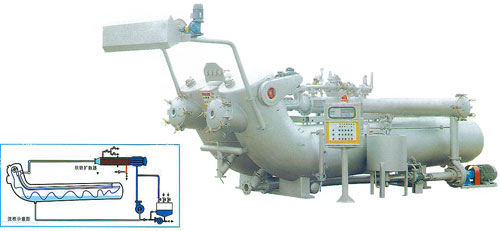

RLP918-B高温高压染色机
RLP918-B DYEING MACHINE UNDERHIGH TEMPERATURE AND HIGH PRESSURE
● 适合化纤、化纤混纺、纯棉等各种厚、薄质、机织、针织布匹，按布匹的质料、组织、厚薄不同可分别采用溢流喷射，一管二条布，在高温压下进行染色和前后处理。
● 规格有：50kg、1OOkg、150kg、250kg、500kg、1000kg供用户自行选购
● It meets the special kinds of thin, thick, machine-woven, knitting which are made from cheminal fibre, chemical fibre mixed spun and pure cotton. According to the different material, structure and thick & thin it can separately adopt over flow jet and one pipe with two-stripe of cloth to perform dyeing at high temperature& high pressure as well as form & back treatment.
● The specification is as follows, 50kg,100kg, 150kg, 250kg, 500kg, 1000kg, and be for customer to choose by himself.
|
型号
Model |
管数
Tube
quantity |
数量(kg)
Carrying
capacity |
功率(kw)
Power |
浴比
Bath ratio |
压力(Mpa)
Pressure |
温度(℃)
Temperature |
布速(m/min)
Fibre speed |
|
RLP-918B |
1 |
50-180 |
9.5-12.5 |
1:6-10 |
0.4 |
152 |
400m/min |
|
RLP-918B |
1 |
280 |
22 |
1:6-10 |
0.4 |
152 |
400m/min |
|
RLP-918B |
2 |
500 |
35 |
1:6-10 |
0.4 |
152 |
400m/min |
|
RLP-918B |
4 |
1000 |
52 |
1:6-10 |
0.4 |
152 |
400m/min |
|
|
