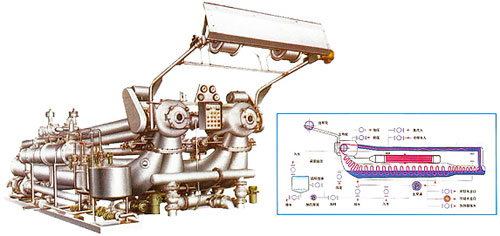

RHP高温高压染色机
RHP HIGH-TEMPERATURE/HIGH-PRESSURE DYEING MACHINE
主要技术参数：
● 型式：卧式、“L”型、上走布喷射染色机 ● 浴比：1：6-10
● 容布量：标准型为125kg/管，从60kg-1000kg，依客户需要随意选择。
● 最高工作温度：140℃ ● 最高工作压力：0.4Mpa
● 布速：最高400m/min ● 最合布克重范围：50-400g/m
● 规格：60kg、125kg、250kg、1000kg供用户自行选购
Main technical paramerer:
● Pattern:Horizontal,"L"type,cloth ascending spray dyeing machine
● Soak rate:1:6-10
● Hold cloth amount:Standard 125kg/pipe,form 60kg-1000kg,according to needs of customer.
● The highest working temperaure:140℃
● The supreme working pressure:0.4Mpa
● Cloth speed:supreme 400m/min
● Suitable weight range of cloth:50-400g/m
● The specification is as follows:60kg,125kg,250kg,500kg,1000kg,and be for customer to choose by himself.
主要技术特点：
● 操作方便，不易堵布：因特殊设计的染槽内网板及机尾扩布装置，使布匹即使在高速运行下，也能在染槽内自然折叠，有序移动，且不挤压，不打结。
● 液满式扩布装置：令布匹浸浴于导布管之染液中，使织物在导布管中成展开状高速运行，故匀染性佳，织物张力小，且不易产生折痕和起毛现象。
● 松驰效果高：可任意调节喷咀水流，能给被处理织物带来最合适喷射力，以达到高效的松驰和搓揉作用，故对莱卡及一些强捻织物、新合纤也能顺畅地进行处理。
Main technological characteristic:
● Easy to operate,difficult to stop up the cloth:Because of the specially designed Network(Fishnet)board in the dyeing trough and the expanded equipment in the tail of the machine,where as the cloth runing at a high speed the cloth can fold naturally,move in order,and not push,not tie even running at a high speed.
● The cloth expanding device(when liquid overflow):Make cloth soak in the dyeing liquor that among the cloth guiding pipe,make the fabric expand and run at a high sped in the cloth guiding pipe,make the fabric expand and run at a high speed in the cloth guiding pipe.So the dye is even,the tension of the fabric is small and not easy to bring the phenomenon of crease and fluff.
● The limp result is good:The water of the spray nozzle can be regulated freely,can give the fabric dealed with suitable spraying power.As a result,it can reach the high-efficient limp and crumple function,so it can tackle Leca,those strong twisted fabric of yarn and synthetic fibers smoothly. |
|
